What is a Busbar Connector and When Should I Use One?
Answer: A
busbar connector is a device used to connect multiple electrical conductors to a busbar, which is a metallic strip that serves as a central connection point in electrical systems. You should use a bus
bar connector when you need to distribute power efficiently in industrial, commercial, or residential electrical panels.
- Busbar
- A flat or strip-like conductor used to distribute electrical power in switchboards and panels.
- Busbar Connector
- A device that connects wires or cables to a busbar, ensuring secure and stable electrical contact.
In a real-world scenario, I was installing a new electrical panel in a small workshop. The panel had multiple circuits feeding different machines, and I needed a reliable way to connect all the incoming wires to the busbar. I used a busbar connector to attach each wire to the busbar, which simplified the installation and improved the overall safety and efficiency of the system.
- Identify the type of busbar you are using (e.g., copper or aluminum).
- Select a busbar connector that matches the size and type of the busbar and the wire gauge.
- Clean the busbar surface to ensure good contact.
- Insert the wire into the busbar connector and tighten the screw or clamp securely.
- Test the connection with a multimeter to ensure continuity and proper contact.
How Do I Choose the Right Busbar Connector for My Application?
Answer: To choose the right busbar connector, you need to consider the current rating, material compatibility, and the type of busbar you are using. Selecting the correct busbar connector ensures long-term reliability and safety. When I was working on a data center project, I had to connect multiple
lifepo4 busbar connectors to a busbar that was part of a
CAN bus connector system. I needed to ensure that the busbar connector could handle the high current and was compatible with the busbar material.
| Parameter | Busbar Connector A | Busbar Connector B |
| Current Rating | 63A | 100A |
| Material | Copper | Aluminum |
| Mounting Type | Clamp | Screw |
| Compatibility | Busbar wire 2.5mm² | Busbar wire 6mm² |
- Determine the maximum current your system will draw.
- Check the material of the busbar (copper or aluminum) and choose a busbar connector made of the same or compatible material.
- Consider the wire size and select a busbar connector that can accommodate it.
- Choose a busbar connector with a mounting type that suits your installation (e.g., screw or clamp).
- Verify that the busbar connector is compatible with the busbar system you are using (e.g., busbar bushing, busbar socket, or busbar cable).
What Are the Common Issues with Busbar Connectors and How Can I Avoid Them?
Answer: Common issues with
busbar connectors include overheating, poor contact, and mechanical failure. These problems can be avoided by using high-quality busbar connectors, ensuring proper installation, and performing regular maintenance. In a recent project, I encountered an issue where a busbar connector was overheating due to a loose connection. I replaced the busbar connector with a higher-quality one and ensured that the connection was tight and secure. This improved the performance and safety of the system.
- Overheating
- Caused by poor contact or excessive current, leading to potential fire hazards.
- Poor Contact
- Occurs when the busbar connector is not properly tightened or the surface is dirty.
- Mechanical Failure
- Results from using a busbar connector that is not rated for the current or environmental conditions.
- Use busbar connectors that are rated for the current and environmental conditions of your application.
- Ensure that the busbar connector is properly tightened and the contact surface is clean.
- Use high-quality busbar connectors from reputable manufacturers to reduce the risk of mechanical failure.
- Perform regular inspections and maintenance to identify and address potential issues early.
- Consider using busbar connectors with additional features such as insulation or heat resistance for harsh environments.
User Reviews and Experiences with Busbar Connectors
Answer: Users generally report positive experiences with busbar connectors, especially when they are used in the correct application and installed properly. Many users highlight the reliability and ease of installation of busbar connectors. In my experience, users who have used busbar connectors in industrial settings often mention the importance of selecting the right busbar connector for their specific needs. For example, users working with busbar wire or

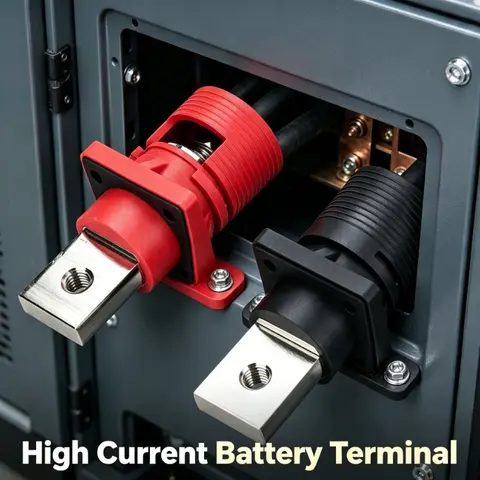

busbar bushing systems have found that using the correct busbar connector significantly improves the performance and safety of their electrical installations. Some users have also shared their experiences with busbar connectors in battery systems, such as

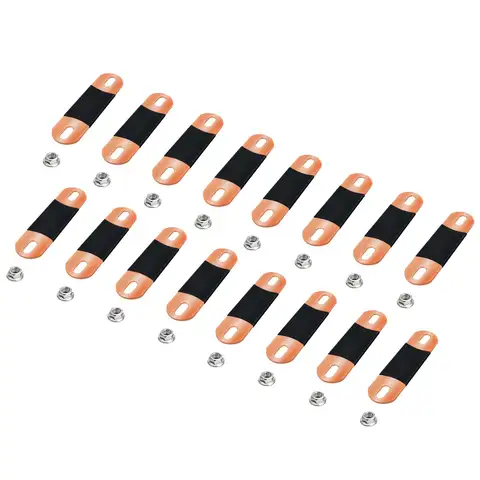

battery bus bar connectors used in
lifepo4 busbar connectors. These users emphasize the importance of using busbar connectors that are specifically designed for high-current applications.
Other Related Products and Accessories
In addition to busbar connectors, there are several related products and accessories that you may find useful in your electrical projects. These include: - Busbar: A central conductor used to distribute electrical power. - Busbar Bushing: A protective cover used to insulate and protect the busbar. -
Busbar Socket: A receptacle used to connect wires to the busbar. -
Busbar Cable: A cable used to connect the busbar to other components in the system. -
CAN Bus Connectors: Used in communication systems to connect devices on a CAN bus. - Bar Connector: A general term for connectors used to connect wires to a busbar. -
Electrical Bus Connector: A connector used to connect wires to an electrical bus. - Busbar Wire: A wire used to connect to a busbar. -
Barbwire Connector: A connector used to connect wires to a busbar in some industrial applications. These products are often used in conjunction with busbar connectors to create a complete and reliable electrical system. When selecting these products, it is important to ensure that they are compatible with your busbar connector and the overall system design.
